LightingWill DC12V RGBW/RGBWW LED Strip Light, 10mm PCB 4-in-1 SMD5050 72 LEDs/m, IP00 IP65 IP67 Flexible LED Tape Light for Mirror Kitchen Cabinet Bedroom, 5m 50m
LightingWill DC12V RGBW/RGBWW LED Strip Light, 10mm PCB 4-in-1 SMD5050 72 LEDs/m, IP00 IP65 IP67 Flexible LED Tape Light for Mirror Kitchen Cabinet Bedroom, 5m 50m
Package Included:
| Version | Package Included |
| 1 Roll × 5 m (16.4 ft total) (Strip Only) | 1 Roll × 5 m (16.4 ft) LED Strip Light Only, Do not include Power Supply and Controller |
| 10 Rolls × 5 m (328 ft total) (Strip Only) | 10 Rolls × 5 m (164 ft total) LED Strip Light Only, Do not include Power Supply and Controller |
| 1 × 5 m Strip + 1 × Controller + 1 × Power Supply (Complete Kit) | 1 Roll × 5 m Strip + 1 × Controller + 1 × Power Supply (Complete Kit) |
About this item
-

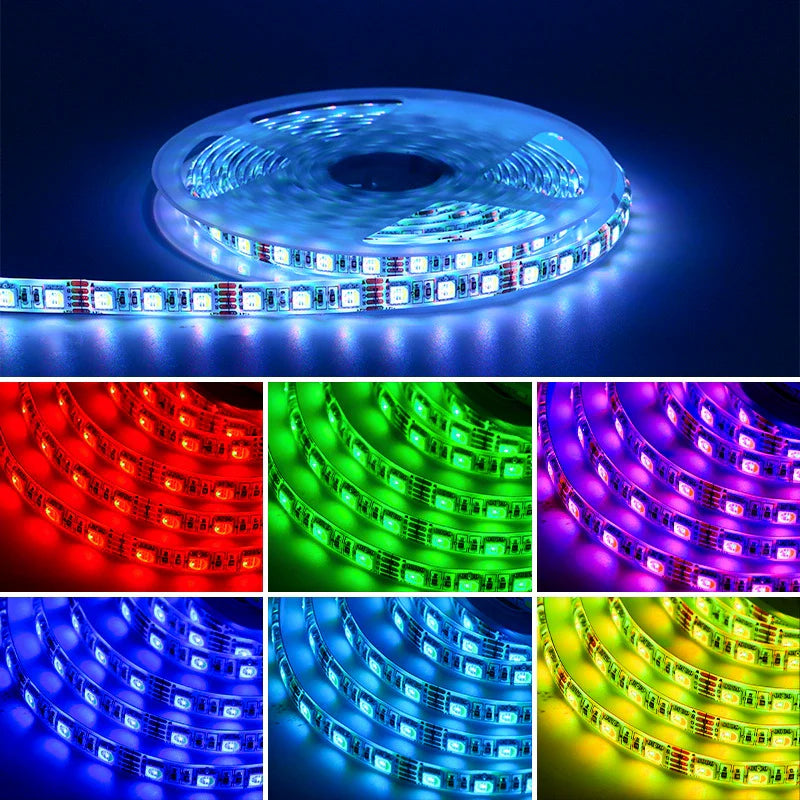

4-In-1 RGBW / RGBWW Lighting Effects – Premium SMD5050 4-in-1 LED chips combine RGB color lighting with white illumination in one LED package, delivering vivid decorative effects together with practical white light output.
-
High-Quality Double-Layer PCB Construction – Built with an electroplated double-layer PCB (25/25 copper) for improved conductivity, heat dissipation, and long-term lighting stability in continuous use.
-
Flexible Installation for Decorative Projects – The flexible strip can be installed along curved surfaces, edges, cabinets, shelves, mirrors, and decorative structures, making it suitable for both home and commercial applications.
-
PWM Controller Compatible & Dimmable – Works with compatible PWM RGBW controllers, allowing adjustable brightness, multiple color modes, and customized lighting atmospheres for entertainment and ambient lighting.
-

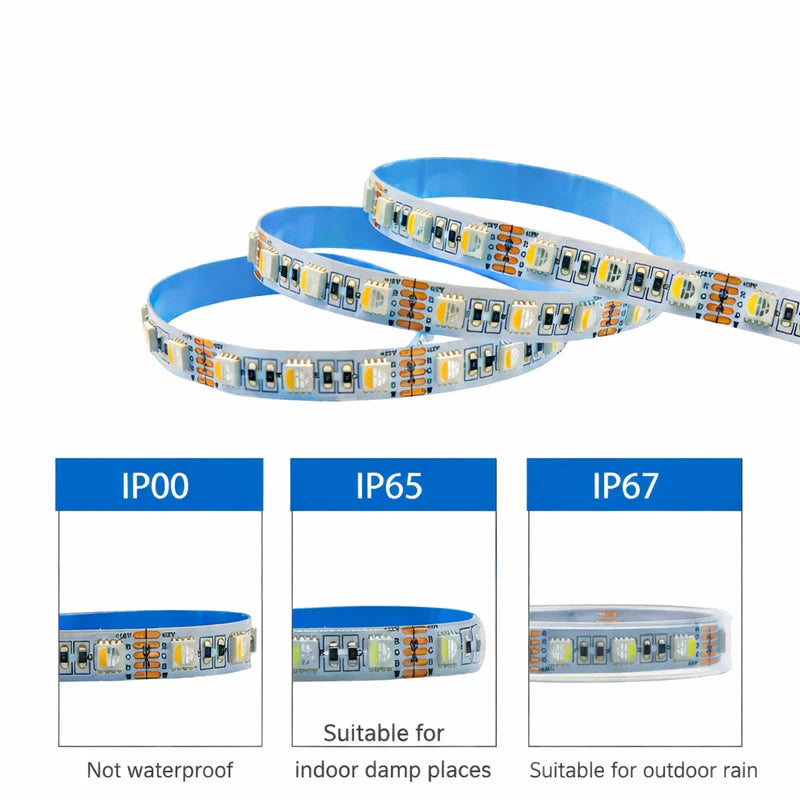

Multiple Waterproof Options Available – Available in IP00, IP65, and IP67 versions to match different installation requirements, from indoor decorative lighting to more protected project environments.
Order & Logistics
- Lead Time: Ships directly from headquarters. Handling time 3–5 business days
- Packing: Carton packaging with protective wrapping
- Shipping:
This series enjoys our Free Shipping Policy for orders over $399.
- HQ Fulfillment (when local stock is unavailable): Standard 9–18 days | Express 5–9 days.
Key Specifications
- Product Type: RGBW LED Strip Light
- Input Voltage: DC12V
- LED Type: SMD5050 RGBW
- LED Density: 72 LEDs/m
- Power Consumption: 14.4 W/m
- LED Power: 0.4 W per LED
- LED Current: 8–10 mA
- Beam Angle: 120°
- CRI: ≥70
- PCB Width: 10 mm
- PCB Material: Electroplated double-layer PCB (25/25 copper)
- Cutting Interval: 41 mm (12V, every 3 LEDs)
- Protection Rating: IP20 / IP65 / IP67
- Strip Dimensions: 5000 × 10 × 2 mm
- Lifespan: Up to 50,000 hours
- Control Method: PWM Controller
- Packaging: 5 m per roll
- Weight: 100 g
Technical Specifications
| Specification | Details |
| Product Type | RGBW LED Strip Light |
| Input Voltage | DC12V |
| LED Type | SMD5050 RGBW |
| LED Density | 72 LEDs/m |
| Power Consumption | 14.4 W/m |
| LED Power | 0.4 W per LED |
| LED Current | 8–10 mA |
| Beam Angle | 120° |
| Power Factor | 0.95 |
| PCB Width | 10 mm |
| Strip Dimensions | 5000 × 10 × 2 mm |
| Waterproof Type | IP00, IP65, and IP67 |
| CRI | 70 |
| Lifespan | Up to 50,000 hours |
| Weight | 100 g |
| Control Method | PWM Controller |
| Packaging | 5 m per roll |
Usage Notes / Installation Tips
- Maximum Connection Length: For 12V LED strips, the recommended maximum length for one continuous run is 5 meters. For longer installations, connect strips in parallel to maintain stable brightness.
- Correct Power Supply: Always use the correct DC12V or DC24V power supply according to the strip version. Using a higher voltage may permanently damage the LED strip.
- Do Not Connect Directly to AC Power: The LED strip must not be connected directly to AC 220V power. Always use a compatible DC power adapter or transformer.
- Battery System Compatibility: The 12V version can be powered by 12V battery systems such as those used in cars, electric vehicles, food carts, and computers. Confirm output voltage before installation.
- Self-Adhesive Installation: The strip includes 5-meter adhesive backing for convenient installation on clean, dry, and smooth surfaces.
- Professional Installation Recommended: For stable and safe operation, professional electrical installation is recommended, especially in larger or commercial lighting projects.
Applications
- Bar and nightclub lighting
- Stage and event lighting
- Home interior decoration
- Commercial display lighting
- Ambient lighting installations
