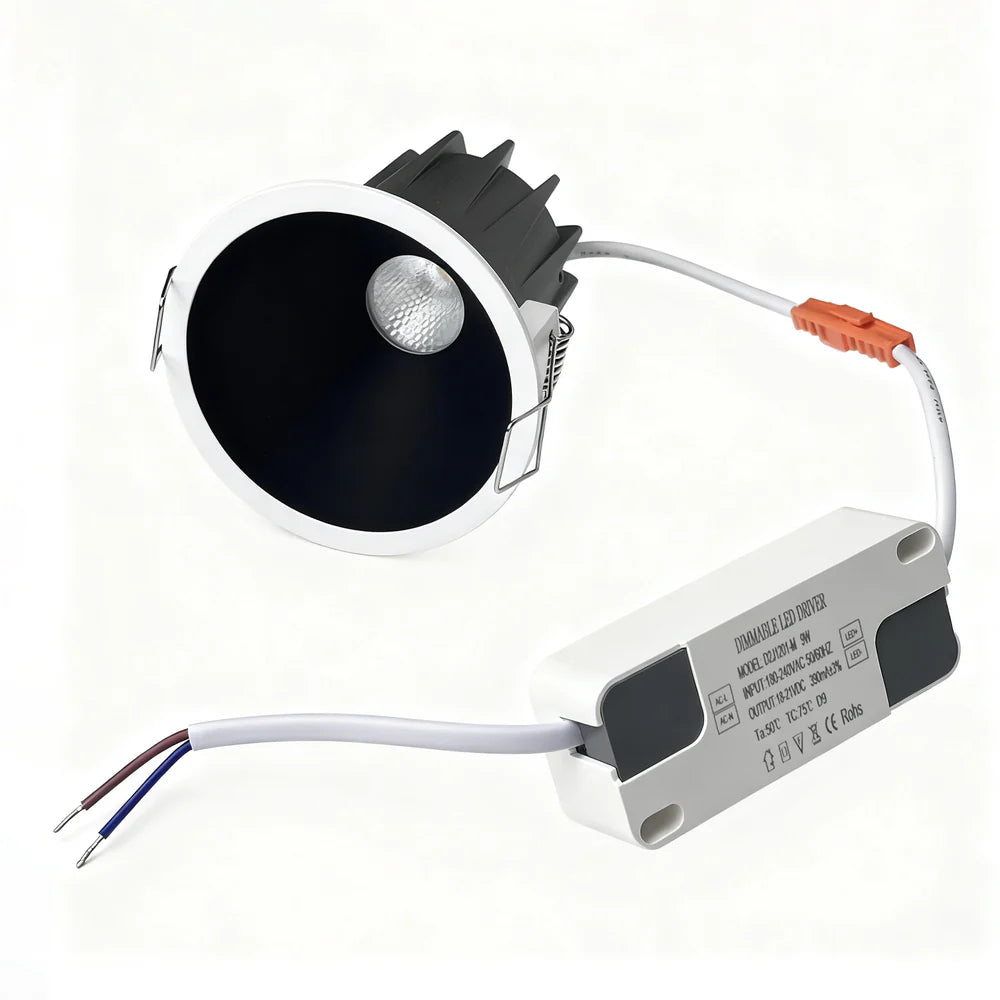

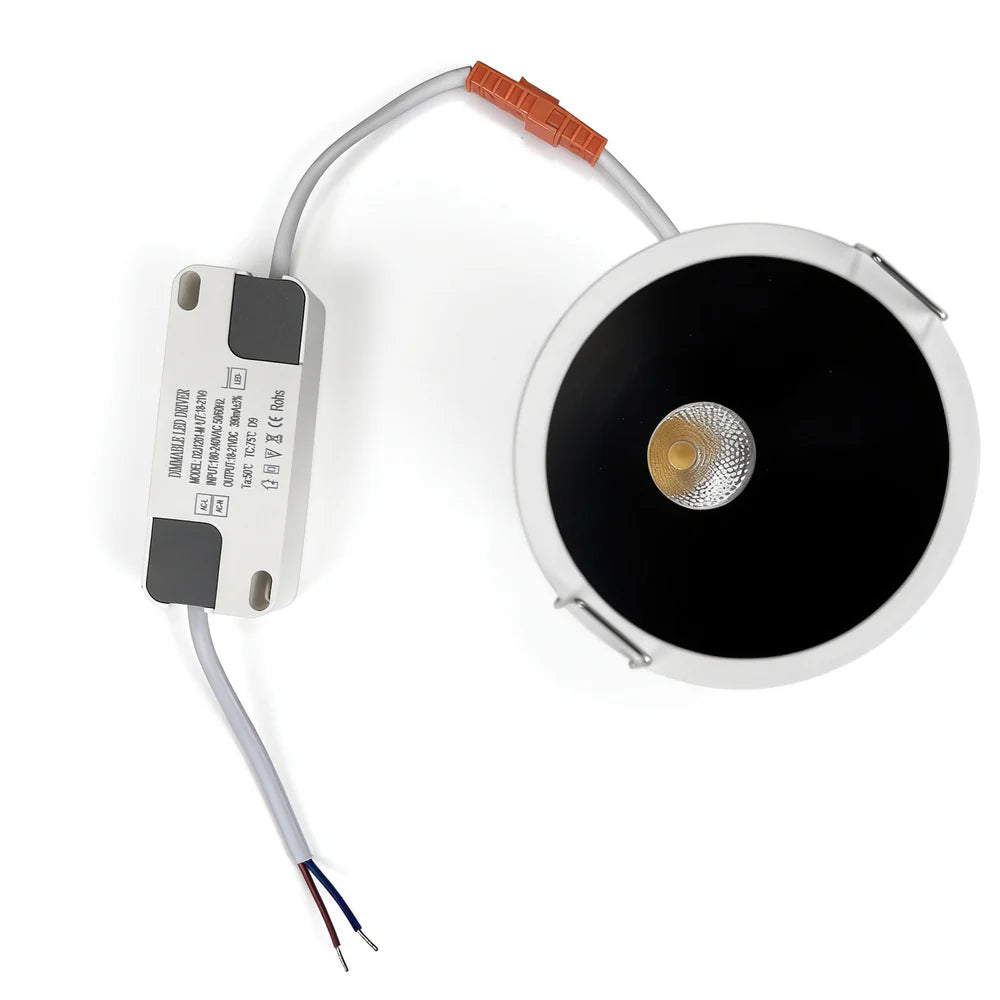

CDG-EU Black Reflector 9W (3″) Deep Anti-Glare Full Spectrum LED Downlight | 200–240V | 4/12 Pack | 3000K / 4000K / 5000K | 24° Beam | White Housing | CRI>95 | Architectural Recessed Lighting
About this item
- Architectural Recessed Design: Designed for architectural recessed lighting applications, this 9W downlight delivers a clean ceiling finish and refined visual appearance for residential, retail, hospitality, and commercial interiors.
- High CRI Performance: Single-color full-spectrum COB LED technology with CRI>95 provides accurate color rendering and natural visual comfort for spaces requiring reliable lighting quality.
- Deep Anti-glare Optical System: The deeply recessed optical structure helps reduce direct glare while maintaining focused illumination, creating a comfortable lighting experience for commercial and residential environments.

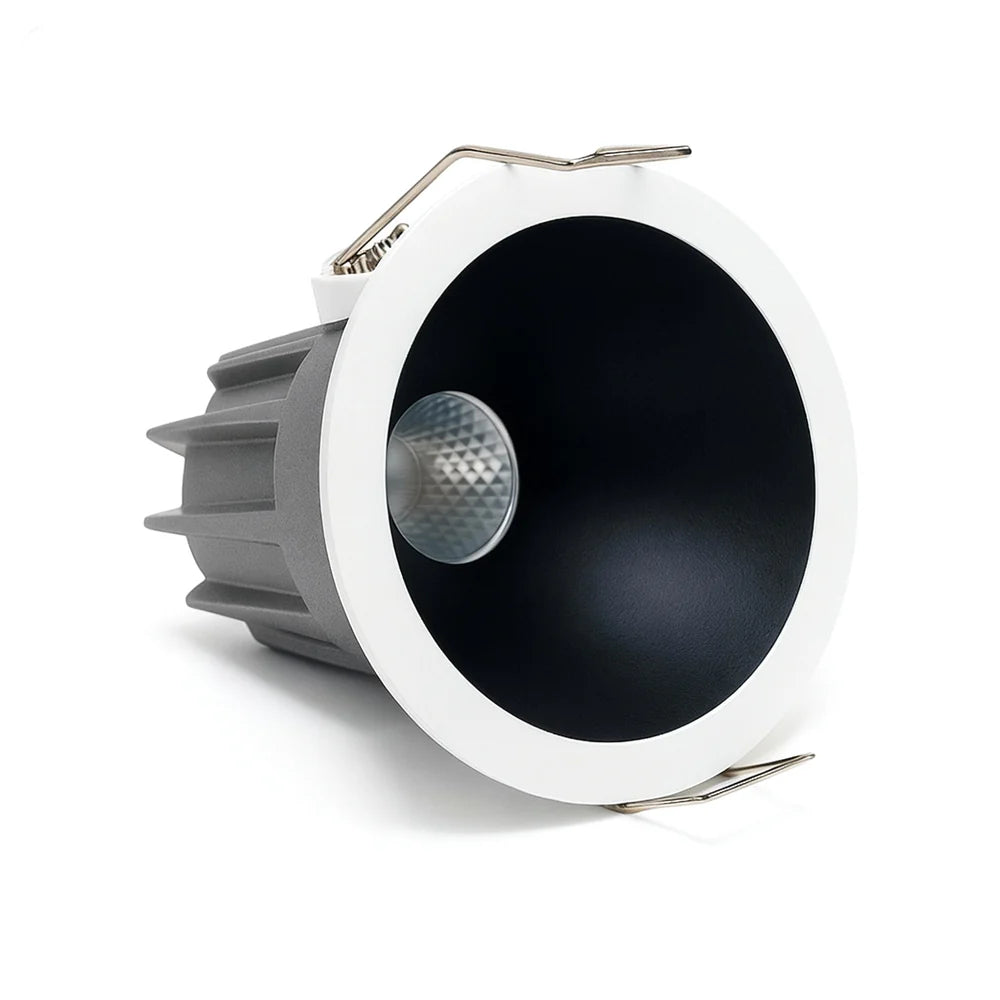

- Reflector Geometry Design: The slanted reflector cup with black inner wall improves glare control and supports a clean 24° beam for precise architectural accent lighting effects.
- Premium Lighting Quality: Available in 3000K / 4000K / 5000K, with flicker-free operation, TRIAC dimming compatibility, and stable 200–240V performance for long-term reliability.
Package Included
| Wattage & Pack Size | Color Temperature | Package Included |
| 9W – 4 Pack | 3000K / 4000K / 5000K | 4 × Deep Anti-Glare LED Downlights with Integrated LED Drivers 1 × User Manual |
| 9W – 12 Pack | 3000K / 4000K / 5000K | 12 × Deep Anti-Glare LED Downlights with Integrated LED Drivers 1 × User Manual |
Order & Logistics
- Lead Time: Usually ships within 1–3 business days from local warehouses. If local inventory is unavailable, fulfillment from HQ within 10–15 business days.
- Packing: Protective cardboard box with individual foam compartments
- Shipping Note: This series enjoys our Free Shipping Policy for orders over $399. Most items in this series are stocked in our local warehouses in the US, UK, and Germany for 3–7 day delivery. If an item is out of stock locally, it will ship from our headquarters warehouse: 9–18 days standard or 5–9 days express.
Key Specifications
- Wattage: 9W
- Voltage: 200–240V AC
- Beam Angle: 24°
- Color Temperature: 3000K / 4000K / 5000K
- CRI: >95 Full Spectrum
- Housing: White aluminum housing with black
anti-glare reflector - Dimming: TRIAC dimmable
- Mounting Type: Recessed ceiling mount
- Lifespan: 50,000 hours
Technical Specifications
| Item | Specification |
| Product Name | CDG-EU Black Reflector Deep Anti-Glare Full Spectrum LED Downlight |
| Wattage (Cut-out Size) | 9W (3″) |
| Housing | White aluminum housing with black anti-glare reflector |
| Optical Structure | Deep anti-glare design; slanted reflector cup with black inner wall |
| Light Source Type | Single-color full-spectrum COB, CRI >95 |
| Beam Angle | 24° |
| Cutout Size | Ø75 mm (3″) |
| Product Size | D81 × H85 mm |
| Input Voltage | AC 200–240V |
| Dimmable | TRIAC dimmable (isolated driver solution) |
| Color Temperature | 3000K / 4000K / 5000K |
| CRI | >95 |
| Light Efficacy | 80 lm/W |
| Driver / Power Supply | TRIAC dimmable; isolated driver; high-quality design |
| Flicker | Flicker-free |
| Blue Light | Low blue light |
| Installation Type | Recessed ceiling mount |
| Use Environment | Indoor use only |
| Notes / Remarks | Full-spectrum COB; isolated driver; high-quality build |
Usage Notes / Installation Tips
- Turn off power before installation or wiring to prevent electric shock.
- Confirm the 3″ cut-out size and ceiling depth before mounting.
- Select the required color temperature option before installation.
- Use with a compatible TRIAC dimmer for smooth dimming performance.
- For indoor use; suitable for dry and damp locations, but avoid direct water contact.
Applications
- Commercial: retail stores, offices, and galleries
- Hospitality: hotels, restaurants, and cafes
- Residential: living rooms, kitchens, and hallways
- Architectural Lighting: accent and task lighting requiring glare control
